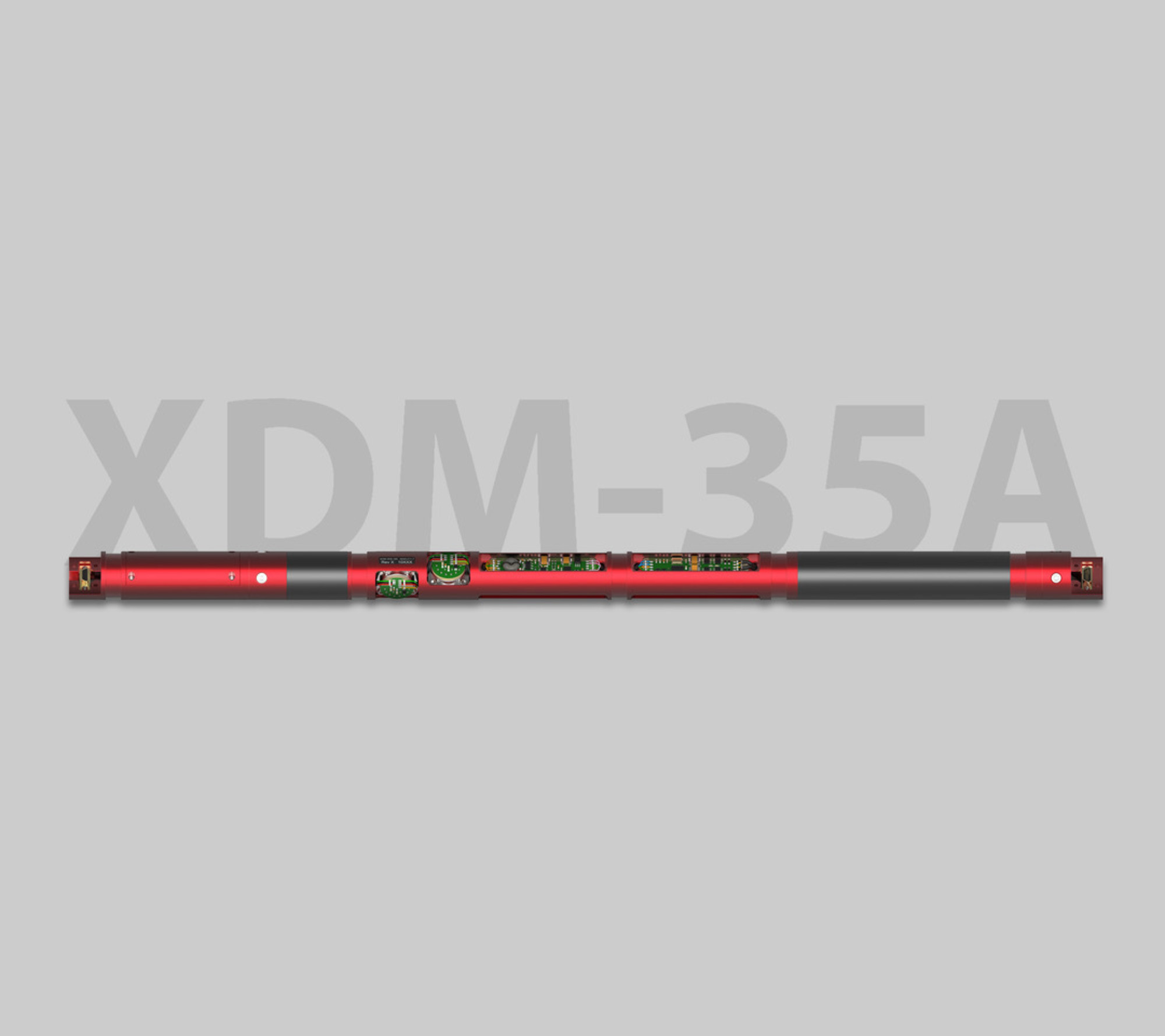

XDM-35A Directional Module
The XDM-35A is the latest Directional Module development from Azimuth, incorporating the entire MPU and TPS functionality for Tensor based MWD systems within a single integrated module. Qualification and calibration to 185C ensures performance in the most demanding ‘hot-hole’ conditions. Proprietary 200C ‘Flux-Gate’ Magnetometers and 190C Accelerometers ensure the sensor is designed to operate reliably at 185DegC, providing accurate and repeatable measurements - including Rotational and Continuous INC/AZI.

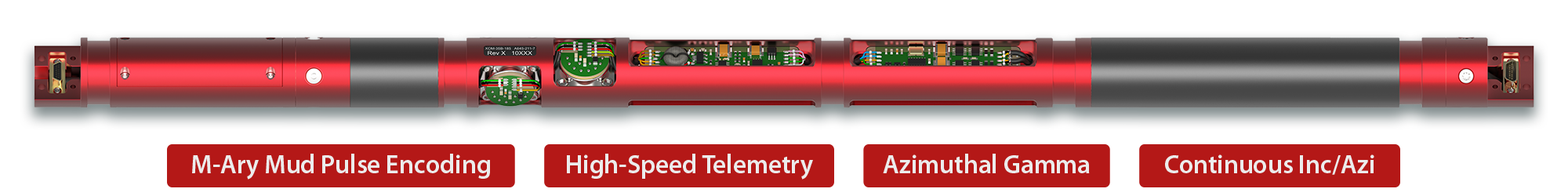

Combined with the latest features of a fully integrated MPU for QBus support and M-Ary telemetry, the unit delivers a highly integrated and cost-effective solution for the user. At a total length of 29.2”, the unit integrates both the MPU and TPS, eliminating separate elements and their associated cost and interfacing. The XDM-35A sensor is qualified and tested under the same rigorous conditions expected of all Azimuth sensors and is fully compatible with existing Tensor based MWD systems. The module is available with temperature ratings of 185, 175 or 150DegC.
Ultra High Temperature Specification
M-Ary Pulse Encoding
Downlink
Continuous INC
Fully Integrated
Azi Gamma
RPM/Stick Slip
3-Axes Shock/Vibration
- MWD Features
- Sensor Features
- Applications
- Sensor Performance
- Electrical
- Memory
- Interface
- Mechanical
- Environmental
- Single chassis design
- Low power consumption
- QBus compatible
- CANBus for fast download
- Flow/Rotary Downlink
- Dual Gamma supported
- 3-Axis Shock/Vibration
- RPM & Stick/Slip Detection
- Voltages/Currents/Events logging
- Gamma power switching
- Deep sleep mode for in-collar loadout with INC/RPM wake-up
- Generic variables for 3rd party connectivity
- Alternative communications: UART/RS-485
- 18-50VDC Input Voltage
- Customisation available
- Low power consumption
- 24-Bit ADC for high quality surveys
- High shock and vibration specification
- 190C/185C Quartz-Flex accelerometers
- 200C Precision Fluxgate Magnetometers
- Independent mag/accel switching for power saving
- On-board coefficients
- MWD/LWD Borehole Survey
- Geothermal applications
- Tensor/QDT Toolstring Compatible
| Description | Value | Units | |||
|---|---|---|---|---|---|
| Inclination Accuracy | +/-0.1 | Deg | |||
| Inclination Repeatability | +/-0.05 | Deg | |||
| TF/Rotation at >5º Inc - Accuracy | +/-0.5 | Deg | |||
| TF/Rotation at >5º Inc - Repeatability | +/-0.05 | Deg | |||
| Azimuth at > 5º Inc - Accuracy | +/-1.0 | Deg | |||
| Azimuth at > 5º Inc - Repeatability | +/-0.5 | Deg |
| Description | Value | Units | |||
|---|---|---|---|---|---|
| Operating Voltage | +18 to 50 | Volts | |||
| Active Power Consumption | 0.9 | Watt | |||
| Quiescent Power Consumption | 0.3 | Watt | |||
| Deep Sleep Power Consumption | 0.1 | Watt | |||
| Sensor ADC Resolution | 24 | bits | |||
| Processor | 32-Bit ARM |
| Description | Value | Units | |||
|---|---|---|---|---|---|
| Size | 256 | MB | |||
| Diagnostic Recording | Survey, Drilling Dynamics, Power and Gamma |
| Description | Value | Units | Comments | ||
|---|---|---|---|---|---|
| Communication Bus | QBus, Proprietary CAN | UART, RS485 optional | |||
| Gamma | 2 Inputs | Bulk or focused gamma | |||
| Mud Pulse | M-Ary Encoding | Fast pulse (0.125s PW) supported |
| Description | Value | Units | Comments | ||
|---|---|---|---|---|---|
| Length | 29.2 | Inches | |||
| Diameter | 1.378 | Inches | Excludes lateral o-rings | ||
| Weight | 2.65 | lb |
| Description | Value | Units | Comments | ||
|---|---|---|---|---|---|
| Operating Temperature | -25 to 185 | ºC | |||
| Survival Temperature | -40 to 200 | ºC | |||
| Vibration | 20 (Q-Flex), 50 (MEMS) | g rms | 50 -1000Hz | ||
| Shock | 1000 (Q-Flex), 2000 (MEMS) | g | 50 -1000Hz |
Notes
- Note: 1. Options available for 175ºC (QFlex) and 150ºC (MEMS) modules.
We provide a responsive repair, calibration and product support service. Our highly experienced and knowledgeable personnel are available to troubleshoot or repair equipment, and provide general product technical assistance.
If you need effective sensor support for your business contact
support@azimuthmwd.com for more information.
