Negative Pulse MWD Toolstring

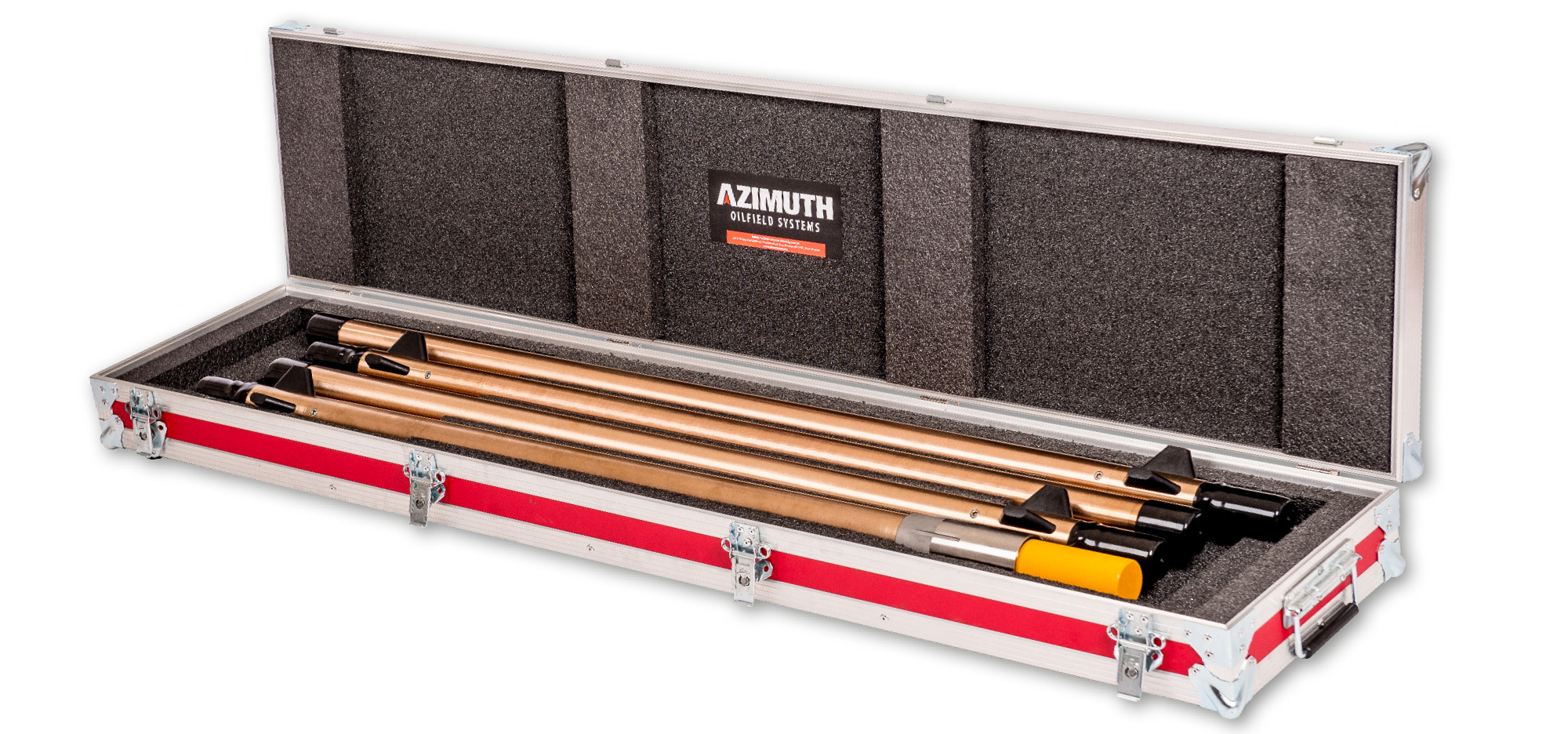

The Azimuth Negative Pulse MWD System is a new generation Directional/Gamma toolstring with the capability to support Resistivity data communications and transmission. Incorporating the latest technologies and features, this rugged and reliable fixed collar mount system ensures that reliability is delivered throughout the lifetime of the system. In addition to real-time shock and vibration, the system is also available with a 175°C operating temperature for hot-hole applications.
When your number one priority is reliability, and you value simple system set-up, then the Negative Pulse MWD System is the clear choice.
- Easy set-up and configuration
- Adaptable to variable collar ID
- Real-time shock and vibration
- Diagnostic data recording
- Quick-connect couplers
- Gamma and Resistivity support
- Automatic TF Enable/Disable (Rotation Detection)
- High resolution Gamma data memory
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Transmission Type | Negative Pulse | ||||
| Mounting | Fixed | ||||
| Telemetry | Pulse Position Modulation | ||||
| Sensor Support | Directional, Gamma, Temperature, Shock/Vibration, Resistivity | ||||
| Flow Switch | Differential Pressure | ||||
| Power | Lithium Cells, Single D/Double D option |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Collar/Sub Sizes (OD) | 4.75 | inches | |||
| 6.75 | inches | ||||
| 8.00 | inches | ||||
| 9.50 | inches | ||||
| Diameter (Housing) LP | 1.895 | inches | |||
| 48.13 | mm | ||||
| Diameter (Housing) HP | 2.000 | inches | |||
| 50.80 | mm | ||||
| Length | 14.6 - 26.7 | ft | Configuration dependant | ||
| 4.45 - 8.14 | m |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Operating Temperature | -25 to 150 | °C | (see note 2) | ||
| -13 to 302 | °F | ||||
| Survival Temperature | -40 to 165 | °C | |||
| -40 to 329 | °F | ||||
| Vibration | 30 | g pk | 50 – 1000Hz | ||
| 20 | g rms | 50 – 1000Hz | |||
| Shock | 1000 | g | 0.5mS Half Sine | ||
| Hydrostatic Pressure | 15/20 | kpsi | LP/HP Respectively | ||
| Maximum Flow Rate | 1200 | USGPM | Max | ||
| LCM Content | 30 | lbs/bbl | Max | ||
| Sand Content | <0.5 | % | (see note 1) | ||
| Pressure Differential | 500-4000 psi |
Notes
- May be de-rated with higher sand content.
- 175ºC option available
We provide a responsive repair, calibration and product support service. Our highly experienced and knowledgeable personnel are available to troubleshoot or repair equipment, and provide general product technical assistance.
